Matrix fast-switching valves
Fast-switching valves with a long service life and a high repeat accuracy. The mechanics enable rapid switching times. Microvalves, multi-valves (including with speed-up control technology), individual or manifold versions, individual valves with miniature control technology.
如果您有任何疑问，请联系我们。
Contact us我们的优质品牌

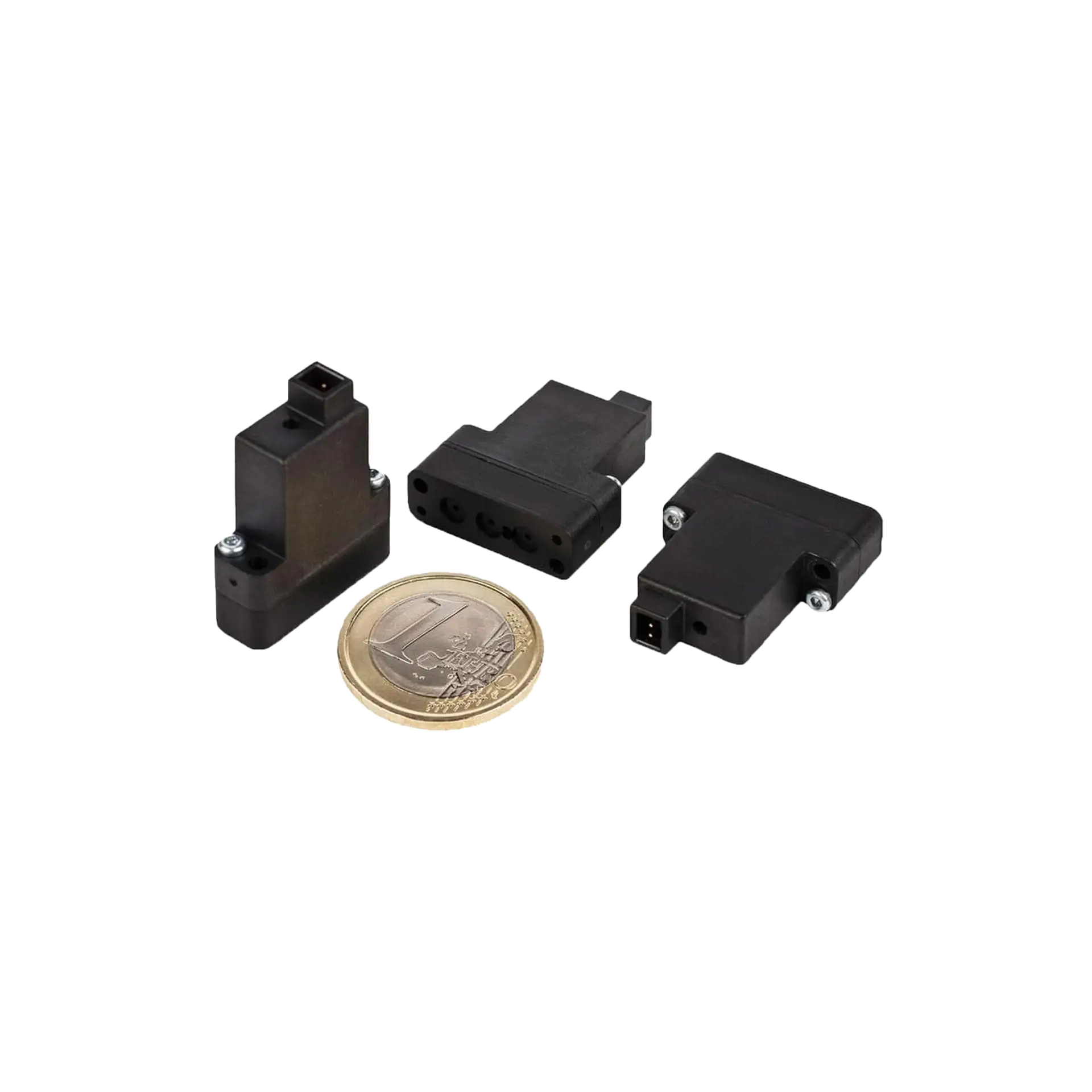

Series 320, 30 Nl/min.
Simplified warehousing, increased availability and cost savings thanks to multifunctionality

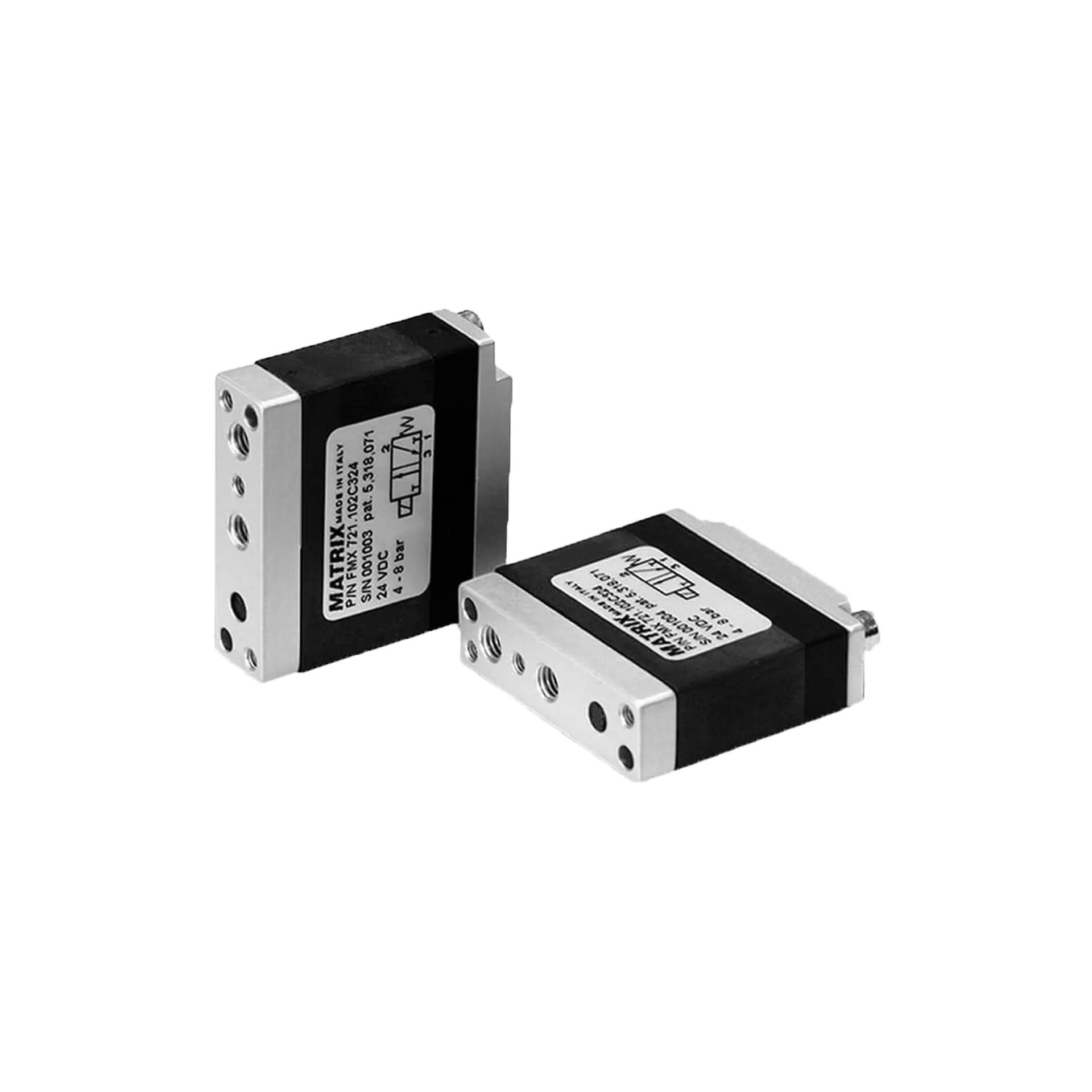

Series 720, 100 Nl/min
The products from the 720 series are available as individual valves or in a manifold version. Various functions and variants can be combined on the manifold base

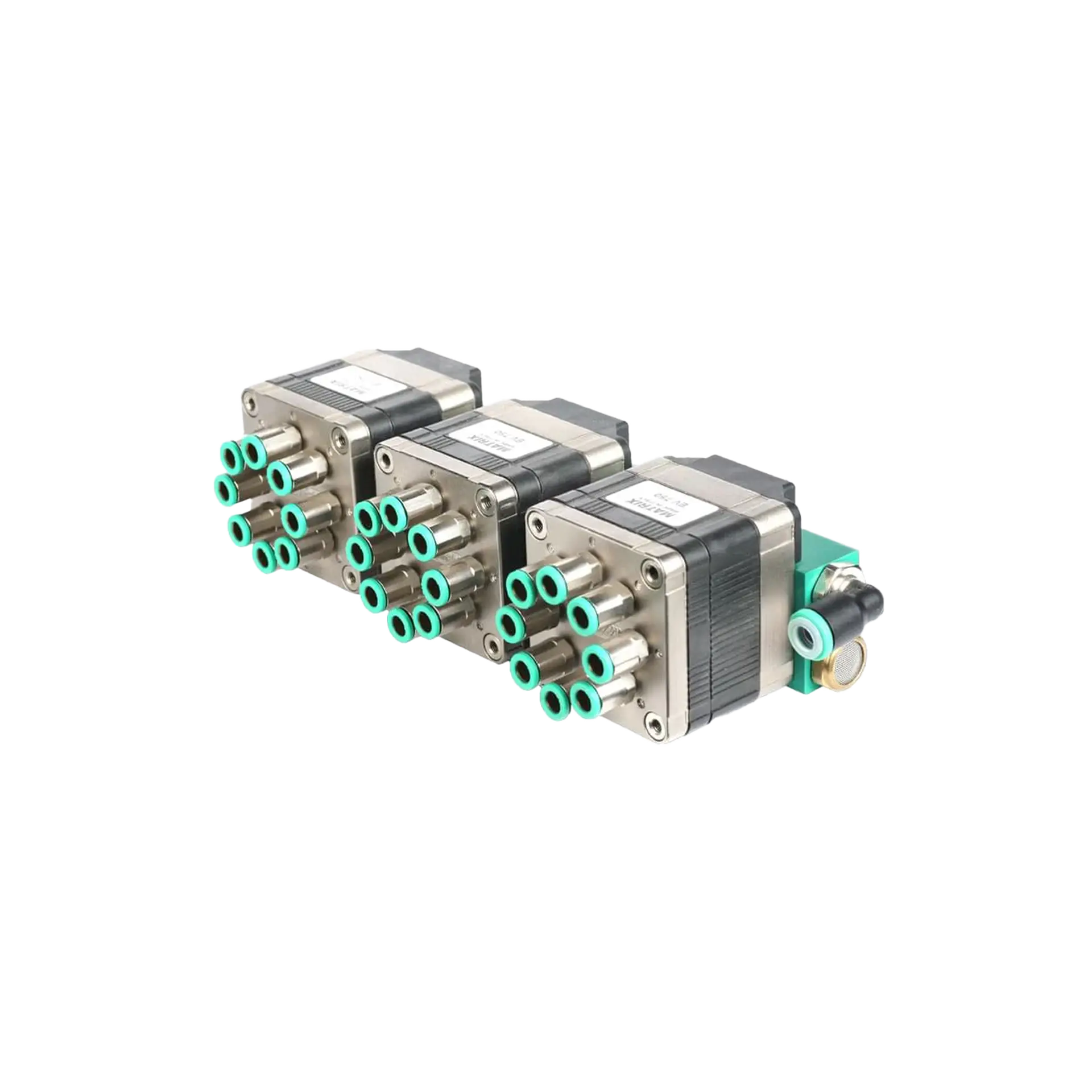

Series 750, 800 Nl/min.
Combines 8 valves in a compact base body with a centralised air supply. Can be combined with the optional manifold base for various functions

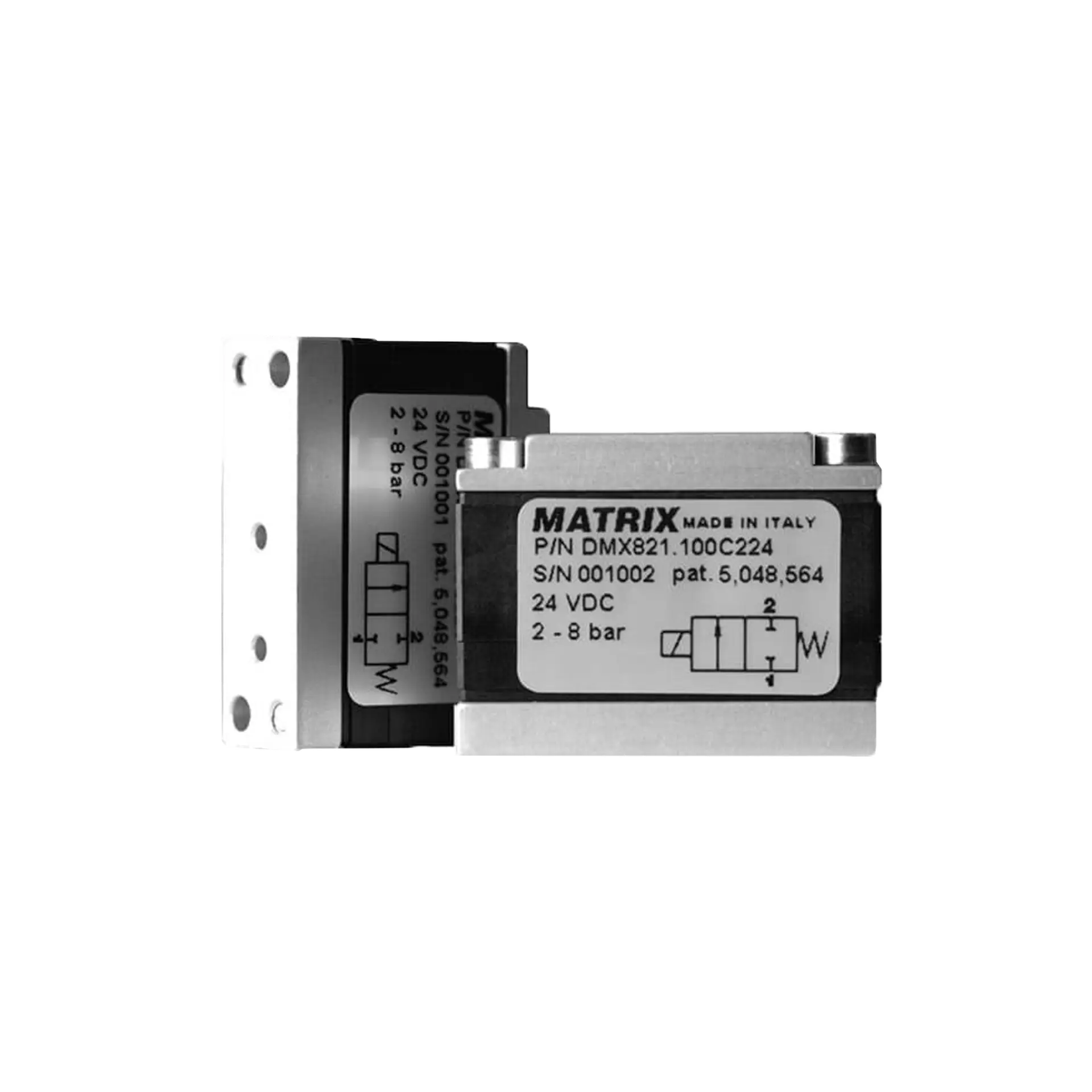

Series 820, 2/2-way, 180 Nl/min.
Solenoid valves: pressure range of 0–8 bar, flow rate of up to 180 Nl/min, switching time of <5 ms (standard) or <1 ms (with Speed-Up version), ≥500 million switching cycles.

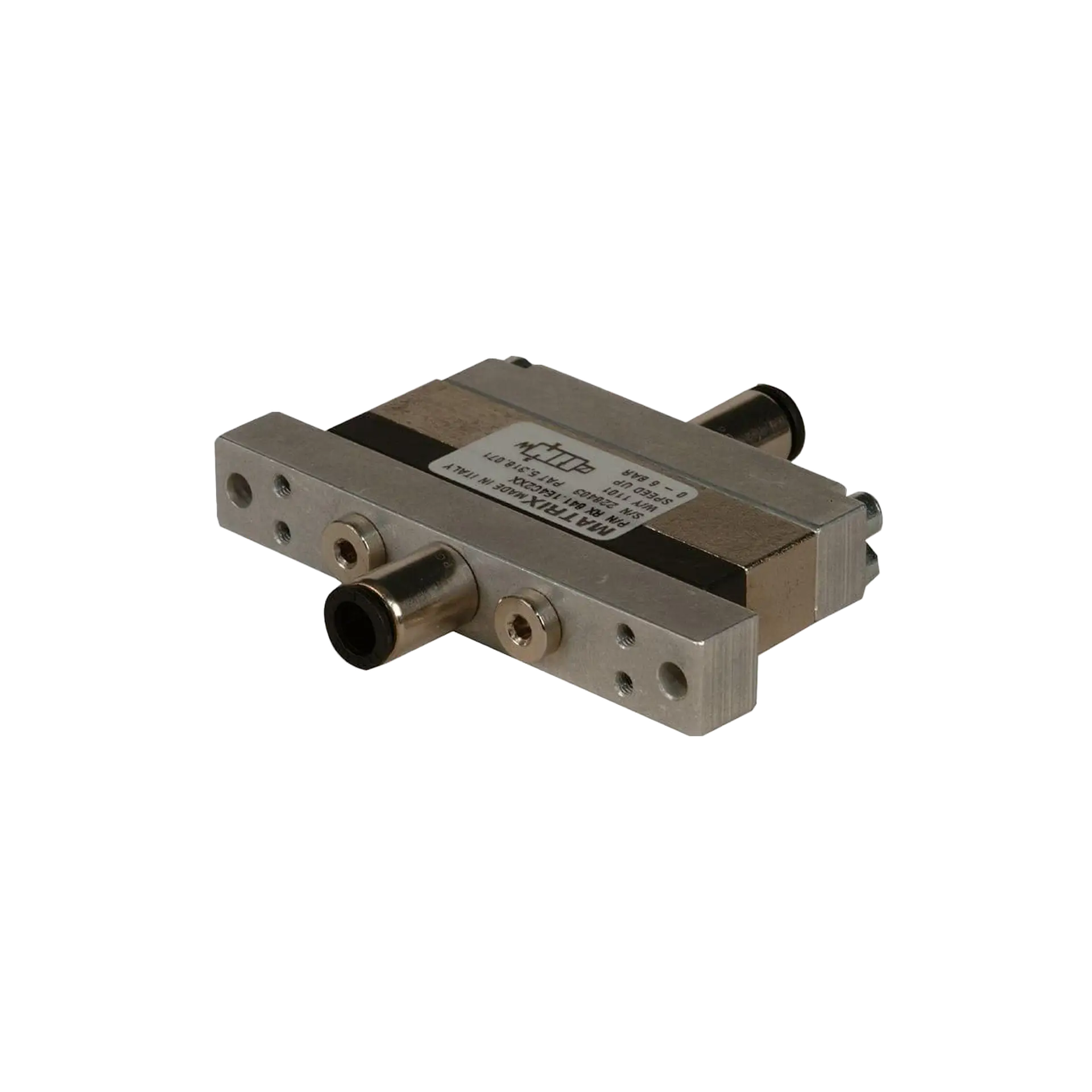

Series 880, 430 Nl/min.
Solenoid valves with Speed-Up control technology, a high flow rate and short switching times

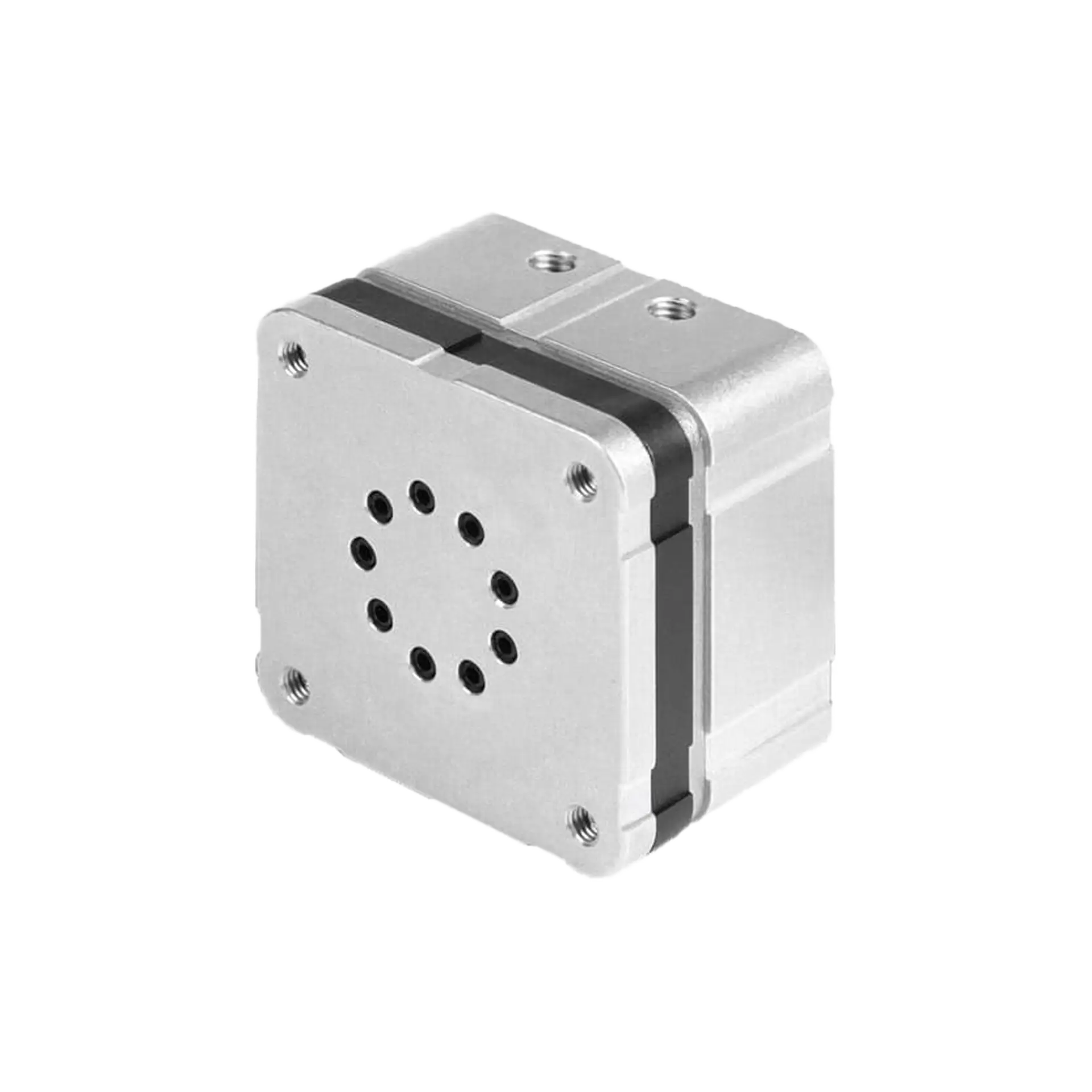

Series 890, 1620 Nl/min
Individual valve and manifold versions with special mounting set for various output configurations.

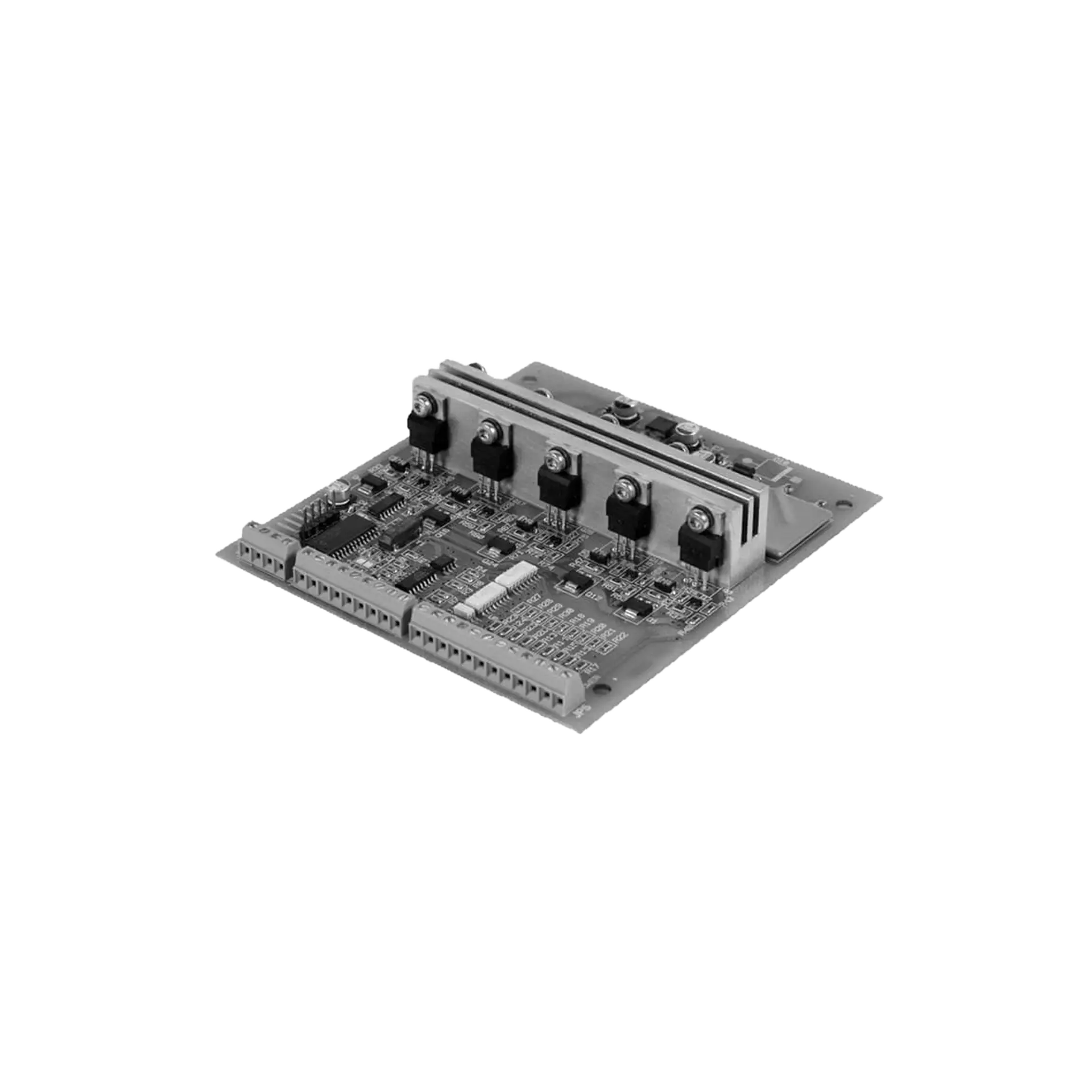

Electronic control cards
Electronic control cards for voltage reduction or proportional control
Series 860, multi-valve proportional valve
The series 860 proportional valve combines 9 valves and offers independent switching and PCM control for 64/256 flow values – all in a compact package
